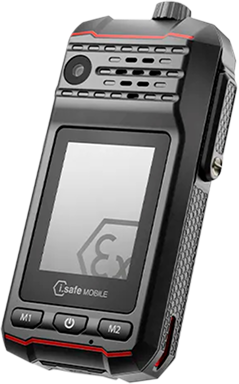

5G RADIO ZONE 1/21 IS440.1

5G Radio ensures secure and flawless PoC communication via public or campus networks (4G or 5G) or Wi-Fi® in Ex Zone 1/21. A gateway makes the IS440.1 interoperable with previous radio technologies, allowing it to be seamlessly integrated into existing systems. The 5G radio features a user-oriented design, replaceable battery, large controls for PTT, SOS, channel selection, a powerful front-facing speaker, ISM interface, and a practical mounting clip.

You can download selected apps compatible with the device directly from the pre-installed App World and update them regularly. The App World contains selected product-related push-to-talk and MDM solutions.

Product features

  • Channel selector switch, e.g., for PTT applications
  • Programmable red key (e.g., for lone worker protection/SOS)
  • Programmable side key (e.g., for PoC/PTT)
  • Additional programmable buttons, M1 and M2, assignable via Button App
  • 8-pin ISM interface for optional audio accessories
  • Powerful 4800 mAh battery for extreme device runtime (optional accessory)
  • Amplified loudspeaker for noisy work environments
  • Integrated belt clip for secure carrying

Operating system:

Operating system:

ISM-OS

Processor:

Qualcomm® QCM6490 Octa Core

Memory:

4 GB RAM

64 GB internal storage

Frequencies:

4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/

B13/B14/B17/B20/B25/B26/B28/B29/ B30/B66/B71/B68
4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48

Dimensions:

Size: 136.6 × 70 × 32 mm Weight: 307 g

Display:

2,4″ (6,096 cm) Corning® Gorilla® Glass V3

Battery:

2400 mAh,

replaceable

Camera:

8 MP AF

Connectivity:

Wi-Fi® 6: IEEE 802.11 a/b/g/n/ac/e/k/r// with hotspot
Bluetooth® 5.2
GPS, A-GPS, Glonass, Beidou, Galileo, NavIC, QZSS, SBAS
NFC

Protection rating:

IP68 dust/waterproof
MIL-STD 810H
Usable from -20 °C to +55 °C

Additional features

Amplified loudspeaker

Dual SIM (Nano-SIM + eSIM)

Accelerometer, gyroscope, magnetometer, pressure sensor

USB Type-C, desktop charger, multi-charger

Red function key (assignable for different 3rd-party applications, e.g., lone worker protection)

Certifications

ATEX (Europe)

approved

II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db

IECEx (International)
approved

Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db

NEC500 (North
America)

Class I Div. 1 Groups A, B, C, D, T4
Class II Div. 1 Groups E, F, G, T135 °C
Class III

IA (South Africa)
approved

Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db

INMETRO (Brazil)
approved

Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
